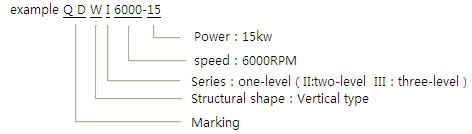

Model Description
Parameters
| 型号type | 功率power（Kw） | 转速speed（rpm） | 处理量output（kg/h） |
QDLⅠ3000-5 | 5.5 | 3000 | 100-500 |
QDLⅠ3000-11 | 11 | 3000 | 300-2000 |
QDLⅠ3000-18 | 18.5 | 3000 | 1000-3000 |
QDLⅠ3000-30 | 30 | 3000 | 2000-6000 |
QDLⅠ3000-75 | 75 | 3000 | 5000-15000 |
QDLⅠ3000-132 | 132 | 3000 | 10000-30000 |
QDLⅠ3000-200 | 200 | 3000 | 15000-50000 |
Primary traita and functions
The series of equipment are fully satisfied with on-line super output wet pulverization processing requirement of the materials. The equipment makes full use of the principle of superfine grinding.And the stucture with stator-rotor of shear pattern is designed to satisfy the superfine grinding.The material can be pulverized effectively to improve product quality by the synthetic action of high shearing,impacting and cavitation resulted from the super high linear velocity.In addition,the equipment has some other traits,such as compact conformation,low energy consumption and easy maintenance,ect.
Application Scope
The series of equipment are primarily application to pulverization of corn with high mass fiow,especially to the further pulverization of peel and dregs.Such as chili,tomato bran,jam,sweet corn,prynne bean,pineapple,cassava,sweet3 potato,straw,eaweed,fishskin,fishbone and other various peel and dregs,ect.
