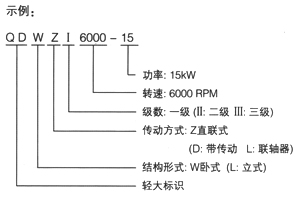

Model Description
Parameters
| type | power（Kw） | speed（rpm） | output（kg/h） |
QDWZⅠ3000-7D | 7.5 | 3000 | 100-500 |
QDWZⅠ3000-11D | 11 | 3000 | 300-2000 |
QDWZⅠ3000-18D | 18.5 | 3000 | 1000-3000 |
QDWZⅠ3000-30D | 30 | 3000 | 2000-6000 |
QDWZⅠ3000-75D | 75 | 3000 | 5000-15000 |
QDWZⅠ3000-132D | 132 | 3000 | 10000-30000 |
Primary traits and functions
TheThe series of equipment are fully satisfied with on-line super output wet pulverization processing requirements of the materials.The equipment makes full use of the principle of superfine grinding .And the structure with stator-rotor of shear pattern is designed to satisfy the superfine grinding.The material can be pulverized effectively to improve product quality by the symthetic action of high shearing ,impacting,grinding and cavitation resulted from the super high linear velocity.In addittion,the equipment has some other traits,such as compact conformation,low energy consumption and easy maintenance,etc.
Application Scope
The series of equipment are primarily application to pulverization of corn with high mass fiow,especially to the further pulverization of peel and dregs.Such as chili,tomato bran,jam,sweet corn,prynne bean,pineapple,cassava,sweet3 potato,straw,eaweed,fishskin,fishbone and other various peel and dregs,ect.
